Technology Overview
01 · Print
Ceramic Frit Print
The finish that lasts as long as the glass.
Inorganic ceramic inks are infused into glass at over 1,200°F, creating a true glass-ceramic bond, not a coating, laminate, or film. The decoration becomes part of the substrate itself, permanently resistant to abrasion, UV fading, moisture, solvents, and chemical attack. For architects who require longevity and repeatability across commercial facades, civic institutions, hospitality, and healthcare, Ceramic Frit delivers color accuracy across large runs, uniform spandrel coverage, and gradients that scale reliably to oversized panels. When permanence matters and the specification must be right the first time and forever, Ceramic Frit is the answer. It also lends itself beautifully to any custom designed application where more is needed and art becomes Architecture.
Features
- +True glass-ceramic bond at 1,200°F+
- +UV, abrasion, moisture & chemical resistant
- +Architectural partitioning > shower enclosures > window & door inserts > railings > facades > signage > art installations > more
- +Exterior-rated, lifetime stable
- +Most glass types available. Low Iron best.
Lead time
4–8 weeks · scope dependent
Coverage
United States · all 50 states
The Ceramic Frit Library
Eight Models. One permanent finish.
Each model represents a distinct ceramic frit aesthetic from full coverage to semi-transparent just some what's possible.

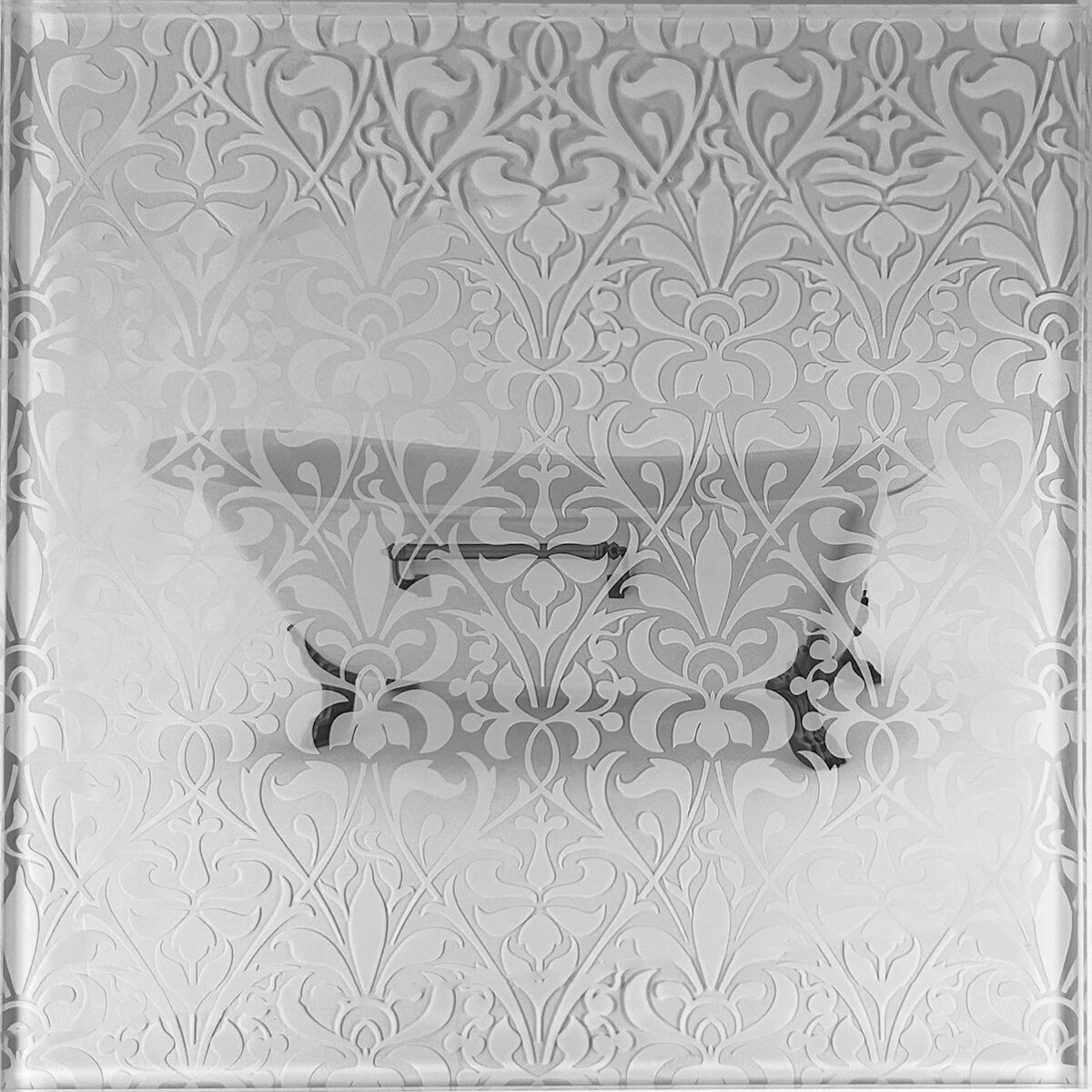

Model No. 5
12″ × 12″ Sample
Ceramic Frit · Model 5
Model No. 5 | 50% Print
Best for Freestanding Applications
Model No. 5 is what you would use when 50% of the pattern is left unprinted, so 50% print and 50% transparency. The pattern is visible from both sides/surfaces. The opacity of the printed pattern can vary from very light 10% up to very opaque at 400%.
Applications
- +Window & Door inserts
- +Architectural partitioning & walls
- +Shower enclosure glass
- +Commercial facades & signage
- +Railings

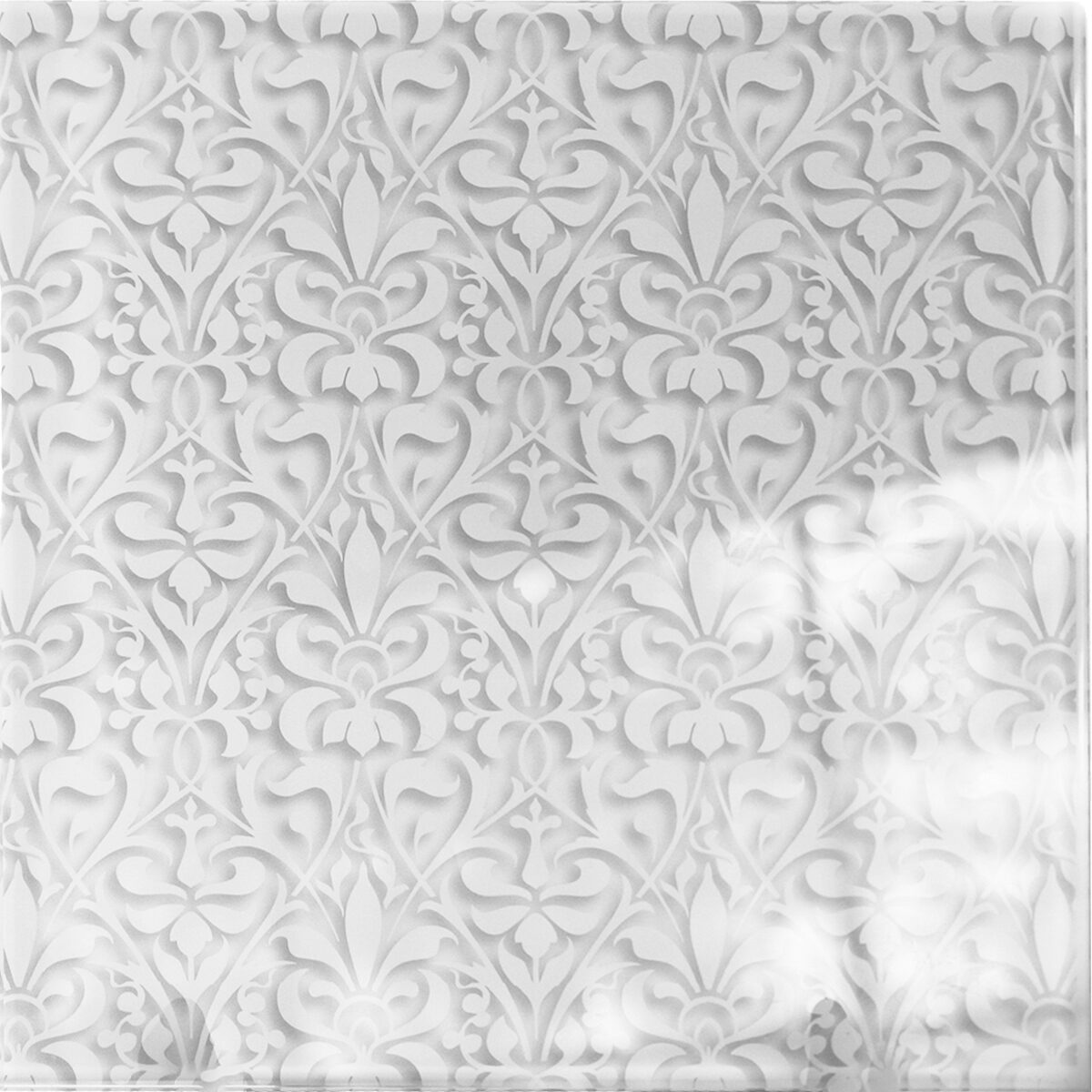

Model No. 6
12″ × 12″ Sample
Ceramic Frit · Model 6
Model No. 6 | All Over
Best for Wall Cladding and Wall Art
Model No. 6 is full coverage meaning 100% of the surface is printed, the shadow shown in the artwork at right is a drop shadow in the artwork itself. The print is on Surface 2 and would be viewed through plain glass Surface 1. If using for wall cladding/covering then an additional back painted layer would be added ontop of the print on Surface 2 for the purpose of blocking any light which can highlight the installation materials. Black backer layer is added for dark colored prints and white backer layer is added for light colored prints.
Applications
- +Shower walls
- +Wall art & murals
- +Photorealistic & Artistic Murals
- +Feature & accent walls

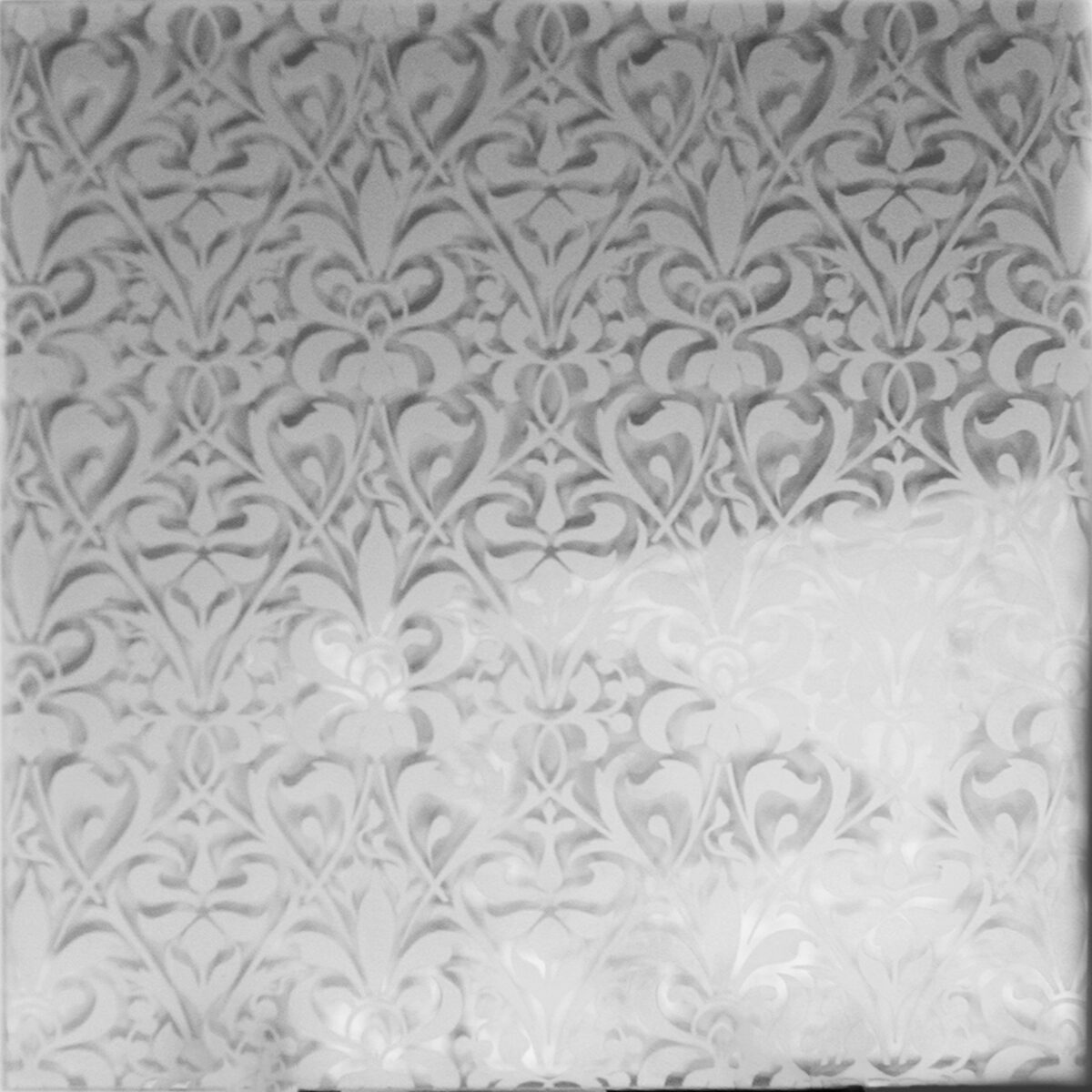

Model No. 7
12″ × 12″ Sample
Ceramic Frit · Model 7
Model No. 7- Printed & Painted
Best for wall cladding as it creates a 3D effect
Model No. 7 is a 50% open pattern print on Surface 1 with Surface 2 being back painted in a complimentary color. The three dimenstional effect is enhanced depending on the thickness of glass. The printed pattern is opaque enough that it is casting a real shadow onto the painted backgroun on Surface 2, which results in the appearance of the print changing as it reacts to the changing ambient light sources throughout the day & night. If using for wall cladding you would not need another back painted layer,as the custom colored Glass Paint supreme is dense enough to block any light from passing through it.
Applications
- +Shower walls
- +Wall art & murals
- +Wine rooms & Wet bars
- +Backsplashes

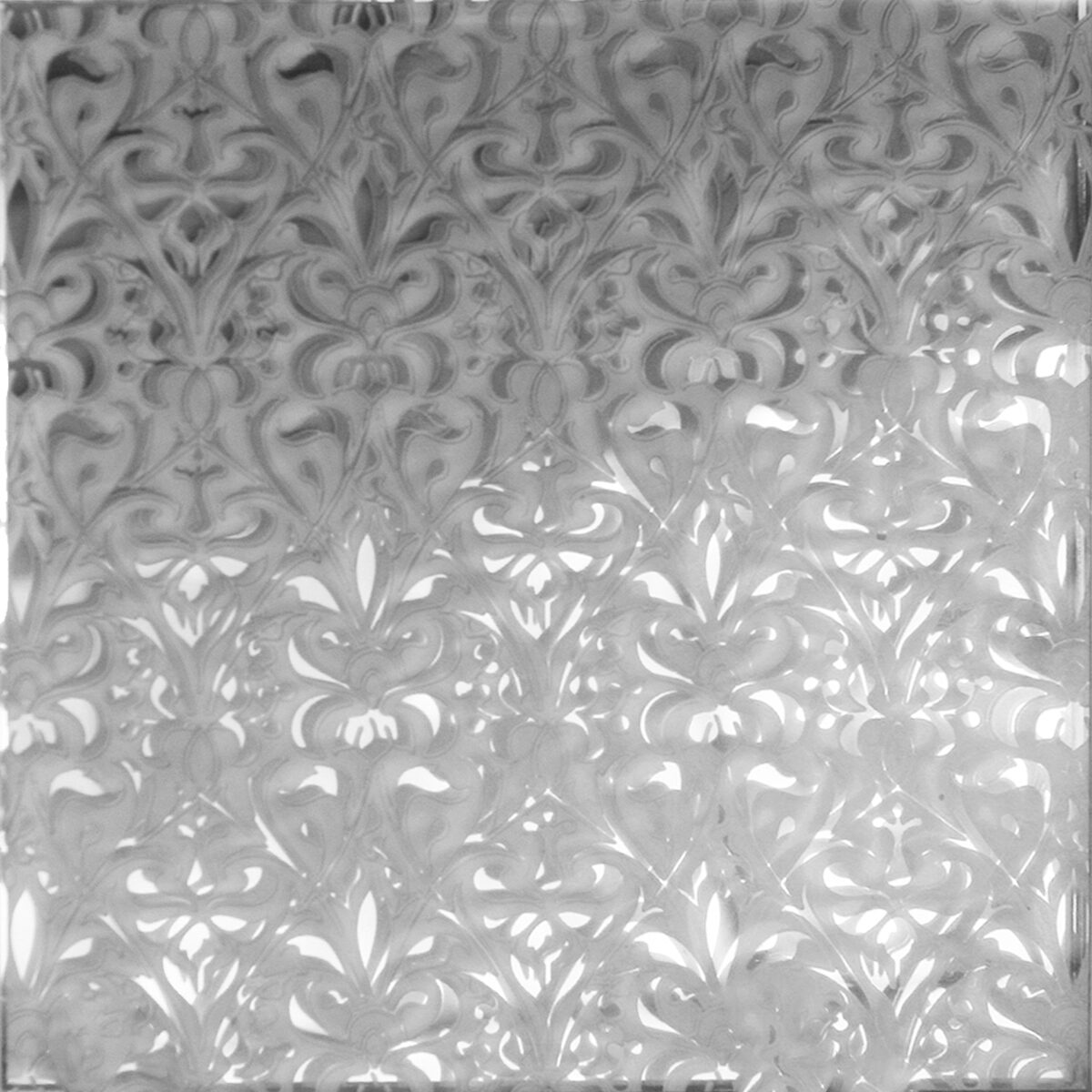

Model No. 8
12″ × 12″ Sample
Ceramic Frit · Model 8
Model No. 8 - Printed Mirror
Model No. 8 is basically No. 7 but with the Mirror 1K finish.
Whereas Model No. 7 can be matched to any custom color, shown here is 50% open pattern print on Surface 1, then back painted with the Mirror K finish on Surface 2. This just elevates the whole scope of three dimensionality. An important aspect of this is all this glass is tempered, so it is safety glass ontop of being very beautiful. Antique solutions are available to add even more interest and creative possibilities. Can be used for both interior & exterior applications in either wet or dry environments with 10 year manufacturer warranty.
Applications
- +Shower walls
- +Backsplashes
- +Feature & accent walls
- +Wine rooms & wet bars

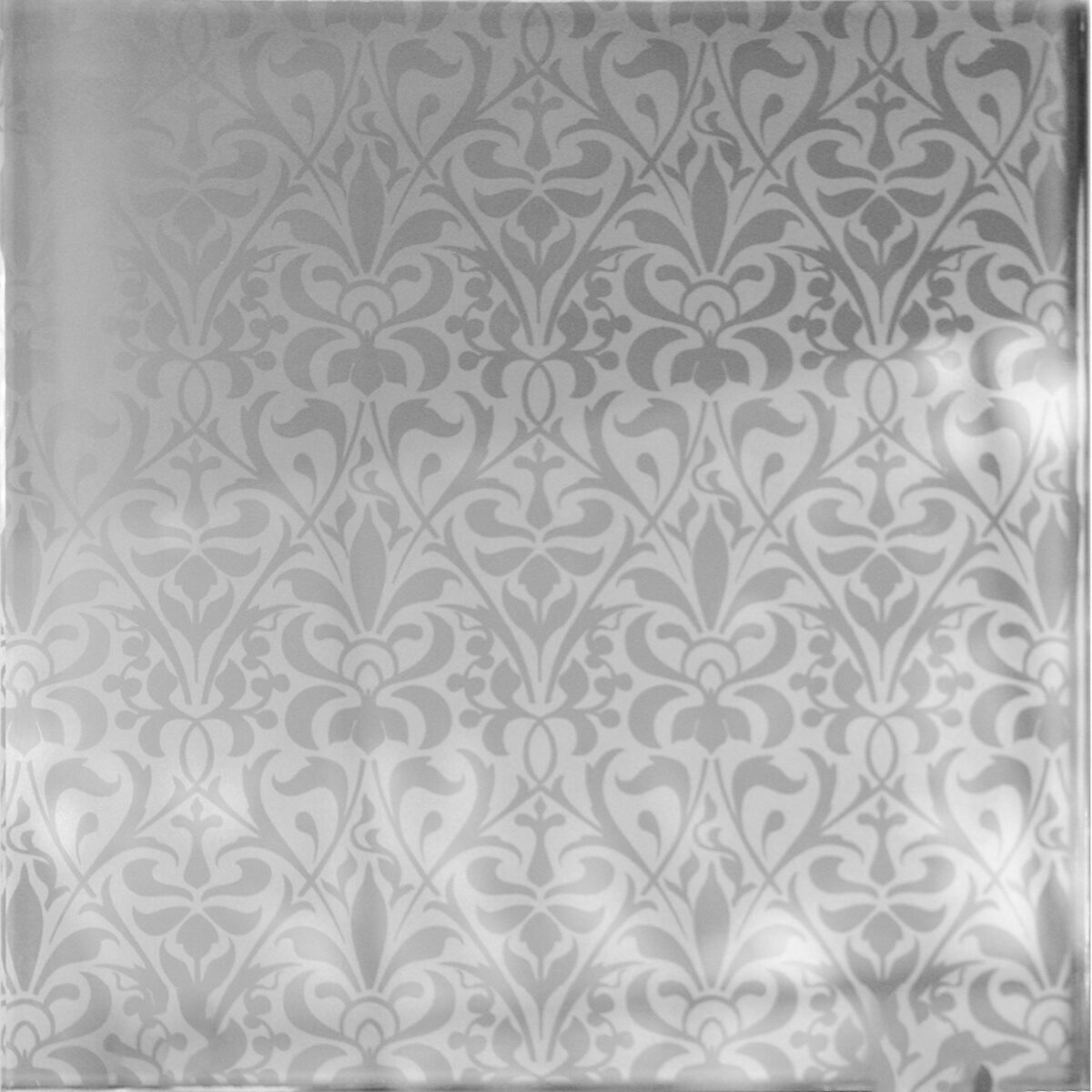

Model No. 9
12″ × 12″ Sample
Ceramic Frit · Model 9
Model No. 9 - Print & Mirror
Like shiny wall paper
Where Model No. 8 has a transparent background that allows the mirror to show through, Model 9 is an all over print where the printed pattern is at 100% opacity and the background is at 20% opacity, which creates a soft overlay to the back painted Mirror 1K finish. Both the printing and the back painting are on Surface 2.
Applications
- +Shower walls
- +Wall art & murals
- +Wine rooms & Wet bars
- +Accent walls

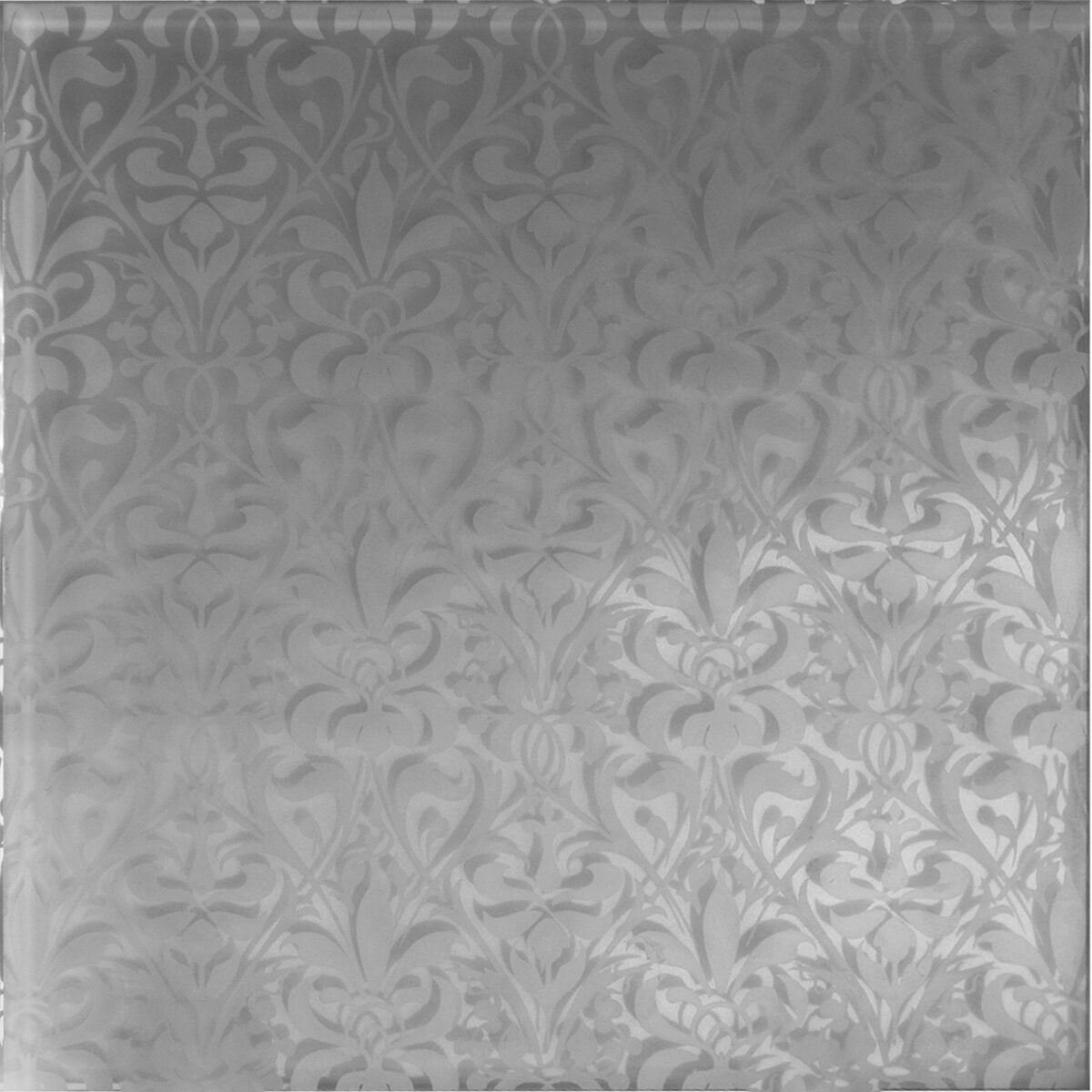

Model No. 15
12″ × 12″ Sample
Ceramic Frit · Model 15
Model No. 15 - Print & Mirror
Very subtle all over printing
The digital print is on Surface 1 and is an all over print, the pattern is at 100% opacity, and the background is at 20% opacity. Surface 2 is painted with the Mirror 1K finish and because of the 20% opacity background it looks very soft, like looking through tissue or gauze, hazy. Because the printed pattern is on Surface 1, you can see it is casting a shadow onto Surface 2 which gives it a 3D quality, where the shadow will move and react to the changing ambient light throughout the day.
Applications
- +Shower walls
- +Backsplash
- +Wine rooms & Wet bars
- +Accent walls

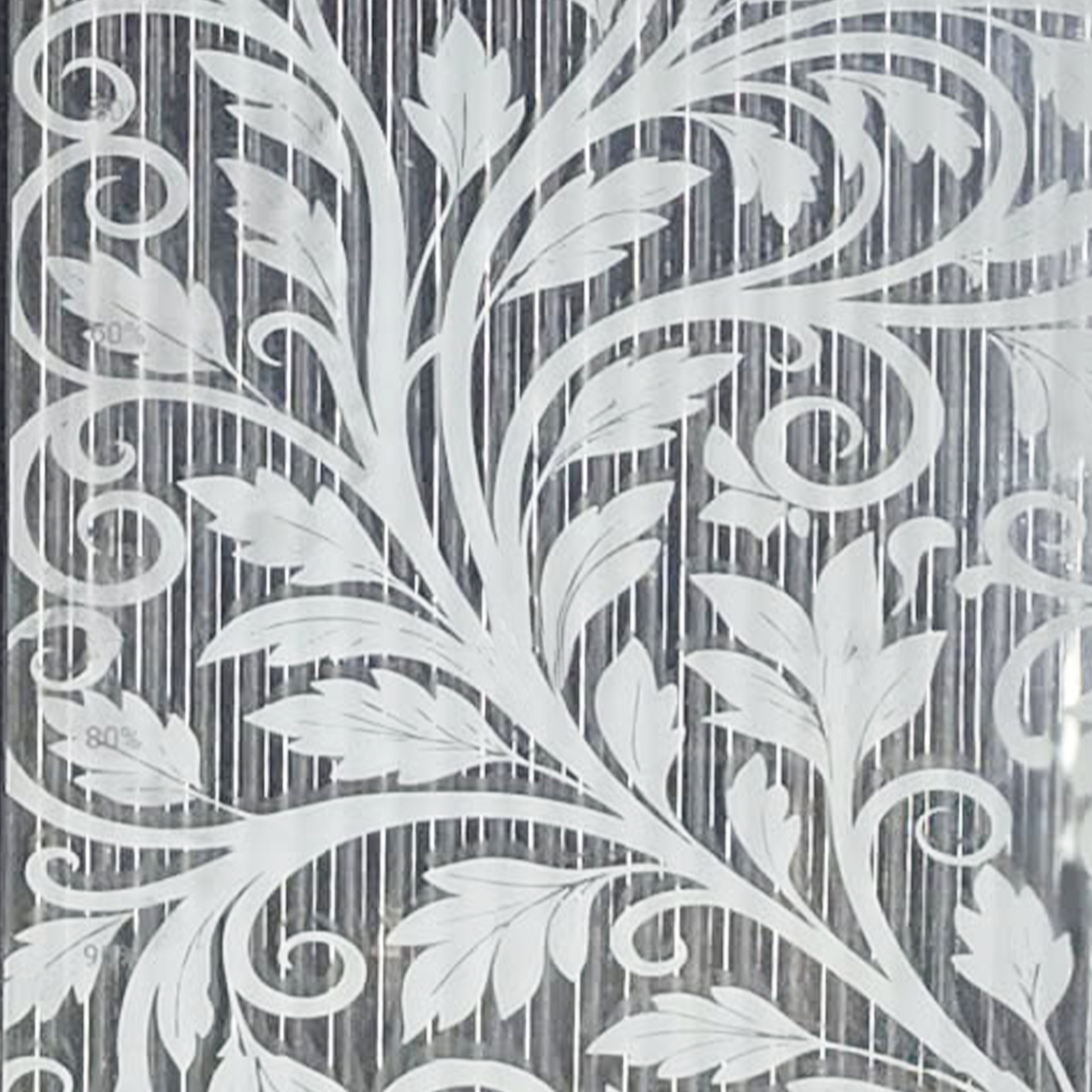

Model No. 28
12″ × 12″ Sample
Ceramic Frit · Model 28
Printed Textured Glass
Model No. 28 - Series
There are many patterns and textures, but not all of them are available in low iron, which is best for printing and color matching. That said, clear glass (greenish tint) will work for darker colors, it's just a matter of what texture works best with each pattern. We plan to add these into the Designer to allow for exploration of the two elements coming together.
Applications
- +Shower Enclosure Glass
- +Windows & Doors
- +Architectural Partitioning
- +Glass Wall Partitions
